Military Headsets
EM-001-AP
$469
- Tocnet capability
- High fidelity utilizing 4-speaker system
- Stereo (Dichotic) audio
- High strength active noise reduction system
- A noise canceling electret microphone
- Superior comfort provided by gel ear seals and a lambs wool comfort top
- Impedance – 300Ohm stereo
- Effective frequency range – 80 – 18k Hz
- Type – M65 electret noise canceling
- Boom – Full flex type
- Frequency Response – 300 Hz – 8k Hz
- Source Resistance – 220 – 2200 ohms
- ANR effective frequency range – 80 – 600 Hz
- Minimum expected additional attenuation: – 19 dB
- Nominal Current – 32 mA
- Voltage 12.0 – 18.0 VDC at the plug
- Domes – polycarbonate or ABS
- Headband – steel
- Cable length – 60 inches
- Cable type – 6 conductor; polyurethane jacket;
- polypropylene insualtion
- Plug – Nexus BR-107
- Weight – 19.616 oz. without cable

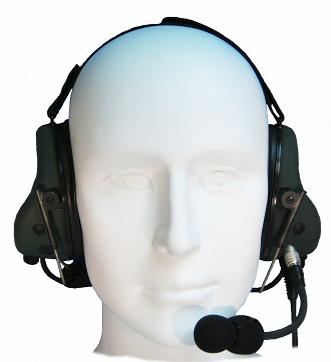

EM-002-ACH-300-BTH Tactical Headset
$550 (with Talkthrough)
$499 (without Talkthrough)
Designed to fit under ACH, MICH, and PASGT type helmets.
The “TANR” series Headset (Tactical Active Noise Reduction), a clean sheet product designed specifically for use with the TOCNET communication system. Superior speech intelligibility is achieved through the use of 4 audio speakers, high strength active noise reduction, and a noise-canceling electret microphone. Comfort is emphasized. Pressure points and hot spots are minimized through the use of a thin nylon head strap and a neckband wrapped in padded cordura fabric.
- High fidelity – excellent audio quality achieved with a 4 speaker audio system
- Active noise cancellation – improves speech intelligibility by neutralizing low-frequency noise
- Lightweight – 16 oz. without cord
- Lower cost – made in USA for approximately one-half the price of competing headsets
Rugged design – modular electronics have passed all environmental tests
Full-flex boom microphone – utilizes noise-canceling electret microphone to provide maximum speech intelligibility. Boom mic connection on each earcup allows for R or L handed shooters
- Impedance – 300 ohm stereo
- Effective Frequency Range – 80 – 18k Hz
- Boom Microphone Type – M65 electret noise canceling
- Boom – Full flex type; R/L interchangeable
- Frequency Response – 300Hz – 8kHz
- Source Resistance – 220 – 2200 ohms
- ANR effective frequency range – 80 – 600 Hz
- Maximum expected additional attenuation – 19dB
- Nominal current – 32 mA
- Voltage 12.0 – 18.0 VDC at the plug
- Binaural function integrated with active noise reductionCompressor/limiter – limits binaural audio to 82db at ear
- Current draw – 30mA
- Source voltage – 9v
- Domes – polycarbonate or ABS
- Headband – beryllium/copper spring steel
- Cable Length – 36″
- Cable type – 6 conductor; polyurethane jacket; polypropylene insulation
- Plug – Hirose Hr 10A
- Weight -16 oz. (w/o cable)
Noise canceling/audio modules meet Gentex Corp. PS-0276 environmental standards*
* Per Gentex report dated 6-17-03
Meets MIL-STD-912/PS-0276/3*
* Per Gentex report dated 6-17-03

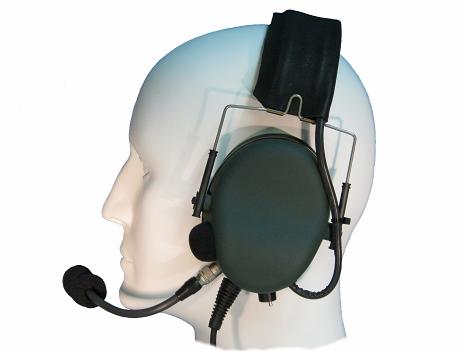

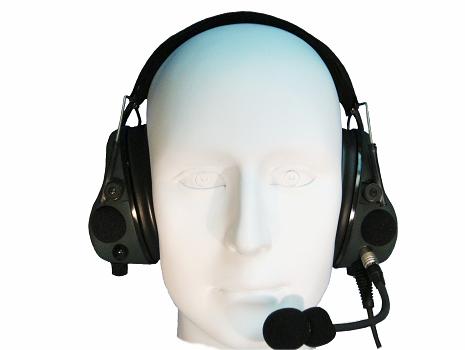

EM-002-ACH-300 Tactical Headset
$550 (with Talkthrough)
$499 (without Talkthrough)
TOCNET compatible – designed specifically for the TOCNET system- currently the preferred headset for use with TOCNET
Designed to fit under ACH, MICH, and PASGT type helmets.
The “TANR” series Headset (Tactical Active Noise Reduction), a clean sheet product designed specifically for use with the TOCNET communication system. Superior speech intelligibility is achieved through the use of 4 audio speakers, high strength active noise reduction, and a noise cancelling electret microphone. Comfort is emphasized. Pressure points and hot spots are minimized through the use of a thin steel headband padded with tempur foam and wrapped in cordura fabric.
- High fidelity – excellent audio quality achieved with a 4 speaker audio system
- Active noise cancellation – improves speech intelligibility by neutralizing low frequency noise
- Lightweight – 16 oz. without cord
- Lower cost – made in USA for approximately one-half the price of competing headsets
Rugged design – modular electronics have passed all environmental tests
Full-flex boom microphone – utilizes noise cancelling electret microphone to provide maximum speech intelligibility. Boom mic connection on each earcup allows for R or L handed shooters
- Impedance – 300 ohm stereo
- Effective Frequency Range – 80 – 18k Hz
- Boom Microphone Type – M65 electret noise canceling
- Boom – Full flex type; R/L interchangeable
- Frequency Response – 300Hz – 8kHz
- Source Resistance – 220 – 2200 ohms
- ANR effective frequency range – 80 – 600 Hz
- Maximum expected additional attenuation – 19dB
- Nominal current – 32 mA
- Voltage 12.0 – 18.0 VDC at the plug
- Binaural function integrated with active noise reductionCompressor/limiter – limits binaural audio to 82db at ear
- Current draw – 30mA
- Source voltage – 9v
- Domes – polycarbonate or ABS
- Headband – beryllium/copper spring steel
- Cable Length – 36″
- Cable type – 6 conductor; polyurethane jacket; polypropylene insulation
- Plug – Hirose Hr 10A
- Weight -16 oz. (w/o cable)
Noise canceling/audio modules meet Gentex Corp. PS-0276 environmental standards*
* Per Gentex report dated 6-17-03
Meets MIL-STD-912/PS-0276/3*
* Per Gentex report dated 6-17-03

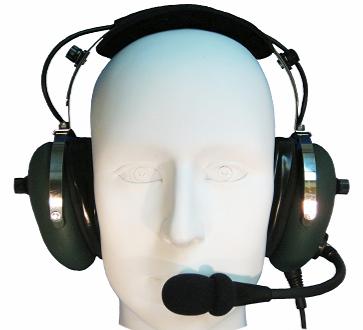

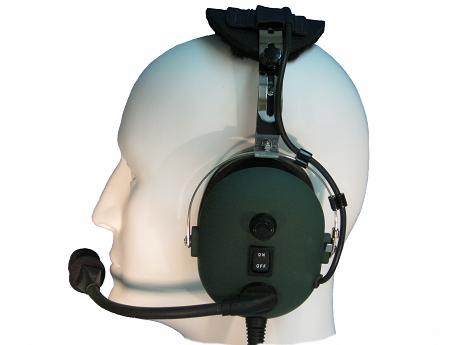

EM-001-A-M65A-HR-5K
$540
TOCNET compatible – designed specifically for the TOCNET system- currently the preferred headset for use with TOCNET
Designed to fit under ACH, MICH, and PASGT type helmets.
The “TANR” series Headset (Tactical Active Noise Reduction), a clean sheet product designed specifically for use with the TOCNET communication system. Superior speech intelligibility is achieved through the use of 4 audio speakers, high strength active noise reduction, and a noise cancelling electret microphone. Comfort is emphasized. Pressure points and hot spots are minimized through the use of a thin steel headband padded with tempur foam and wrapped in cordura fabric.
- High fidelity – excellent audio quality achieved with a 4 speaker audio system
- Active noise cancellation – improves speech intelligibility by neutralizing low frequency noise
- Lightweight – 16 oz. without cord
- Lower cost – made in USA for approximately one-half the price of competing headsets
Rugged design – modular electronics have passed all environmental tests
Full-flex boom microphone – utilizes noise cancelling electret microphone to provide maximum speech intelligibility. Boom mic connection on each earcup allows for R or L handed shooters
- Impedance – 300 ohm stereo
- Effective Frequency Range – 80 – 18k Hz
- Boom Microphone Type – M65 electret noise canceling
- Boom – Full flex type; R/L interchangeable
- Frequency Response – 300Hz – 8kHz
- Source Resistance – 220 – 2200 ohms
- ANR effective frequency range – 80 – 600 Hz
- Maximum expected additional attenuation – 19dB
- Nominal current – 32 mA
- Voltage 12.0 – 18.0 VDC at the plug
- Binaural function integrated with active noise reductionCompressor/limiter – limits binaural audio to 82db at ear
- Current draw – 30mA
- Source voltage – 9v
- Domes – polycarbonate or ABS
- Headband – beryllium/copper spring steel
- Cable Length – 36″
- Cable type – 6 conductor; polyurethane jacket; polypropylene insulation
- Plug – Hirose Hr 10A
- Weight -16 oz. (w/o cable)
Noise canceling/audio modules meet Gentex Corp. PS-0276 environmental standards*
* Per Gentex report dated 6-17-03
Meets MIL-STD-912/PS-0276/3*
* Per Gentex report dated 6-17-03

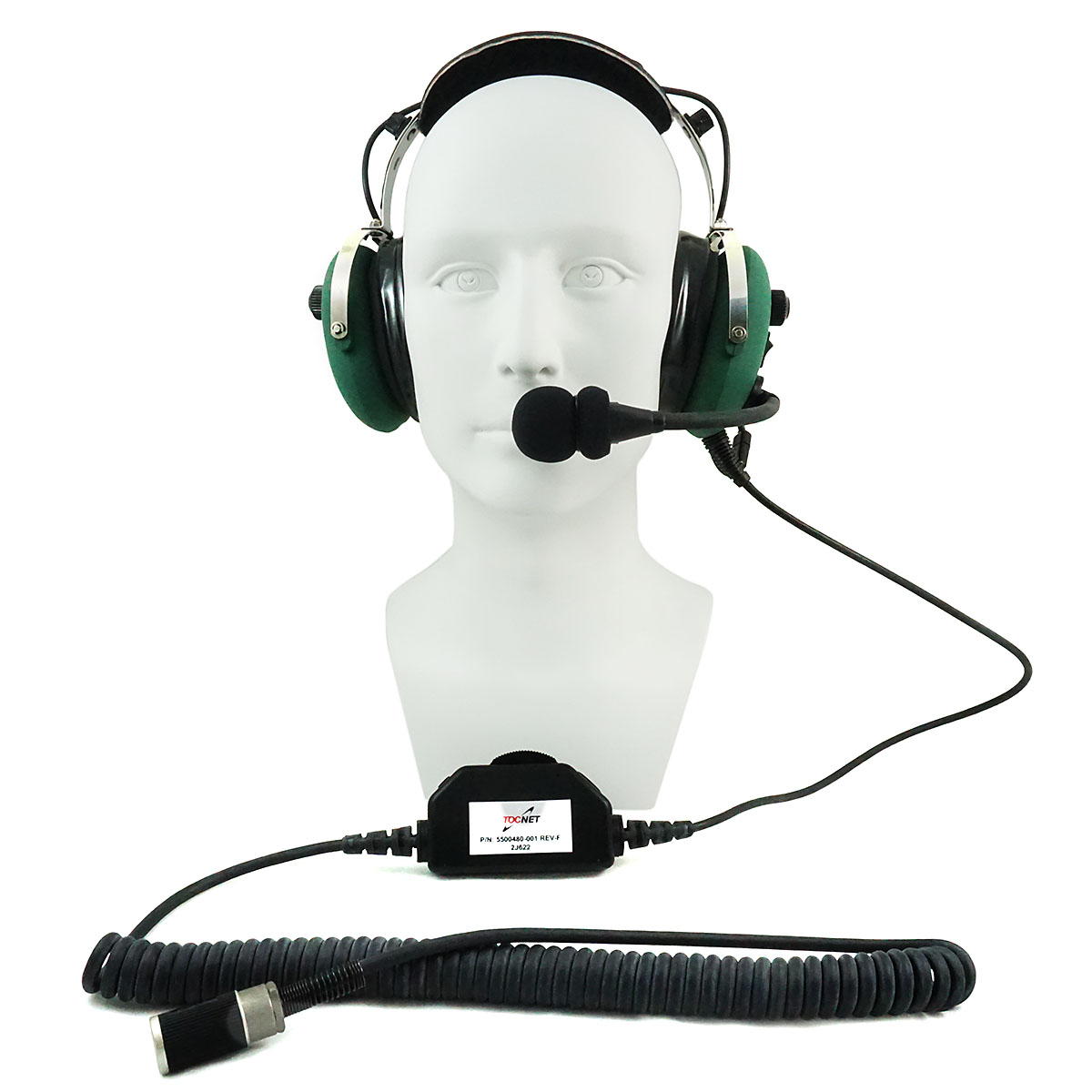

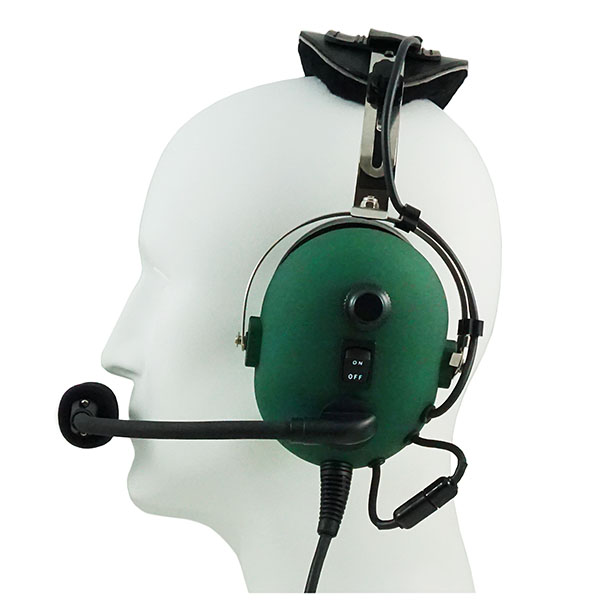

EM-001-A-150-Z-PTT-A
$898
- Tocnet capability
- High fidelity utilizing 4-speaker system
- Stereo (Dichotic) audio
- High strength active noise reduction system
- A noise-canceling M101 dynamic microphone 150 Ohm
- Superior comfort provided by gel ear seals and a lambswool comfort top
- 3 Position cable mounted PTT switch (Lock on ICOM, Neutral, Momentary Radio)
- Impedance – 300 Ohm stereo
- Effective Frequency Range – 80 – 18k Hz
- Boom Microphone Type – M101 Dynamic 150 Ohm
- Boom – Full flex type
- Frequency Response – 200 – 6 k ohm
- ANR effective frequency range – 80 – 600 Hz
- Minimum expected additional attenuation: – 19 dB
- Nominal Current – 32 mA
- Voltage 24.0 VDC at the plug
- Domes – polycarbonate or ABS
- Headband – steel
- Cable length – 5 feet, coiled portion collapsed
- Cable type – 6 conductor straight and coiled cable; polyurethane jacket;
- Polypropylene insulation
- Plug – Cooper CL1129-3
- Weight – 19.616 oz. without cable
